Not getting anything with fresh battery

[Blarfnugle]

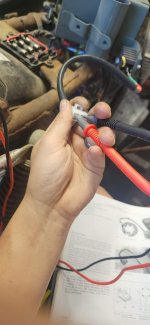

Hello everyone, working on my 1974 CB360T and I have nothing, no lights, no engine turn over, etc and I'm a little overwhelmed by the service manual on what to test, plus the images are a little unclear as to where I should be putting the multimeter prongs. I've uploaded a video where I go over everything I've checked but I'll also list it here.

Fuses (7A and 15A) continuity checked
Silicon rectifier replaced with new regulator/rectifier, no idea if it actually works but the old one had a prong ripped out so it definitely didn't work
verified continuity of wires in the magnetic switch
verified continuity of positive and negative terminals
Derusted and painted the battery box with VHT spraypaint
Unseized the engine
cleaned the points and verified points gap
Cleaned the carburetor
Replaced the Carb gasket
Replaced the Battery with an AGM battery

Here's the video showing the bike and what I've done so far :

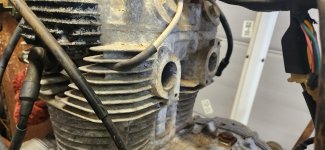

I've also attached more photos of the bike, it was ROUGH before I got it and I'm already surprised at how much better it looks.



[stl360+450]

Take a look at the main switch where the key goes. There is a wiring diagram in the manual and it shows how things should connect for the various key positions. I recommend making sure that your switch is working on all of the positions. The main switch is responsible for getting battery power everywhere else.



[Blarfnugle]

That a look at the main switch where the key goes. There is a wiring diagram in the manual and it shows how things should connect for the various key positions. I recommend making sure that your switch is working on all of the positions. The main switch is responsible for getting battery power everywhere else.

Do I just check for continuity? I haven't checked to see what the service manual has to say about that.



[stl360+450]

Yes. The main switch connects to the harness though a multi wire plastic connector. I would disconnect there so you can check continuity between the leads with the key in different positions. Red will go to the battery and when the key is turned to the run position, I believe there should be continuity from red to black and brown to brown/white. Double check on the diagram.



[boddy]

If you can access the ignition switch connector plug, I would set your multi meter to 20V and put the + probe to the red wire in the back of the connector block and the neg wire of the tester to a ground point on the engine or frame. You should get at least 12v.

With the ignition switch in the ON position put the + probe of the tester on the black wire of the connector block and the neg probe to ground. You should get 12V coming out of the switch. If you are getting zero or low voltage on the black wire then the ignition switch probably has corroded contacts. You might be able to take the switch apart and clean the contacts. Pictures of the back of the ignition switch will help.



[EzPete]

Couple of questions:

1. Do you have voltage at the fuse with the red wires on both sides? Place the positive probe on either contact for that fuse, negative probe on the negative terminal of the battery.

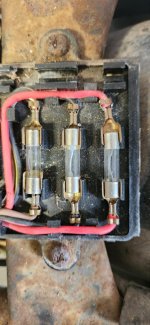

2. When you say checked continuity of the fuses - did you mean through the fuse and clamps? Because none of those look seated in the clamp. You can pinch them a little to tighten up the clamp.



[Blarfnugle]

If you can access the ignition switch connector plug, I would set your multi meter to 20V and put the + probe to the red wire in the back of the connector block and the neg wire of the tester to a ground point on the engine or frame. You should get at least 12v.

With the ignition switch in the ON position put the + probe of the tester on the black wire of the connector block and the neg probe to ground. You should get 12V coming out of the switch. If you are getting zero or low voltage on the black wire then the ignition switch probably has corroded contacts. You might be able to take the switch apart and clean the contacts. Pictures of the back of the ignition switch will help.

Thanks, I'll try that tomorrow and upload pics.



[Blarfnugle]

Yes. The main switch connects to the harness though a multi wire plastic connector. I would disconnect there so you can check continuity between the leads with the key in different positions. Red will go to the battery and when the key is turned to the run position, I believe there should be continuity from red to black and brown to brown/white. Double check on the diagram.

I will try that tomorrow!



[Blarfnugle]

Couple of questions:

1. Do you have voltage at the fuse with the red wires on both sides? Place the positive probe on either contact for that fuse, negative probe on the negative terminal of the battery.

2. When you say checked continuity of the fuses - did you mean through the fuse and clamps? Because none of those look seated in the clamp. You can pinch them a little to tighten up the clamp.

1. I didn't think to put the negative probe on the negative terminal. I was just testing to make sure the fuse wasn't burnt out.
2. Are they not? They're pretty firmly in there, I have to slide them out with a pair of needle nose pliers.
